This Flare 2KSDI camera is VERY compact! But it has BIG features:
- Housing size: 63,5 x 63,5 x 44,1mm
- 2/3" CMOS sensor
- C-Mount lenses
- It has 3G support by either Dual HD-SDI or one 3G SDI connection
- The camera has Genlock input and RS-485 control.
Making it an ideal camera for broadcast applications for tiny spaces like in cars, or to be placed invisible on stage.

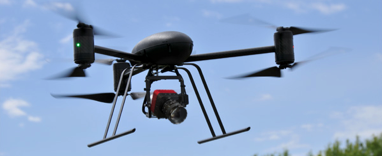

The unit is also ideal to be placed on Polecam, Drones or dual units as 3D camera.

Single Link HD-SDI:
- 720p 10bit 4:2:2: 720p50, 720p59.94, 720p60
- 1080p 10bit 4:2:2: 23.98, 24, 25, 29.97, 30 frames/sec

Single Link 3G-SDI:
- 1080p 10bit 4:2:2: 1080p50, 1080p59.94, 1080p60
- 2K 12bit 4:4:4: 24 frames/sec

As the Flare 2KSDI camera is as small as possible, the unit has a combined Power/data Lemo connector.
Camera control can be done with the special remote control, or through RS-485 through a USB cable and PC software.
The parameters that can be controlled are:
- Exposure/Gain
- Gamma
- Color Matrix, Color saturation
- HDR-mode
- Black Level, Knee Level/Slope,
- Histogram Overlay
- Sync & Output settings.

Due to the small size of the Flare 2KSDI camera, and the Genlock input. It is the ideal camera, to make small 3D rigs. Here you see an example with two Flare 2KSDI camera;s mounted on a rig with the a Convergent recorder. Add an Time-code buddy and one can genlock on internal or external Timecode.

The Flare 2KSDI camera can receive any C-mount lens optimized for 1" sensors.
